Description
| Indoor Model | Unit | ECA-60CRN1 | |
| Outdoor Model | ECA-60CRN1 | ||

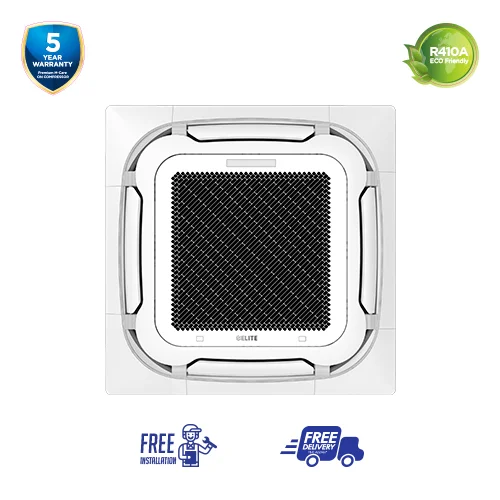

| Type (wall type or others) | Cassette type | ||
| Type (On-Off/Inverter) | On-Off | ||
| Type (Cooling only/Heating-Cooling) | Cooling only | ||
| Power Supply | V-Ph-Hz | 220-240V, 1Ph, 50Hz | |
| Gas Type | R410 | ||
| Gas Amount(Kg) | Kg | 3.4 | |
| Cooling | Capacity (Btu/H) | (Btu/H) | 60000 |
| Standard Current (A) | A | 10.5 | |
| Standard Input (W) | W | 6500 | |
| Rated Current (Max Current) | A | 13 | |
| Rated Input (Max Input) | W | 8500 | |
| EER | W/W | 2.6 | |
| EER | (BTU/Hr)/W | 7.06 | |
| SEER | W/W | N/A | |
| Star Rating | Star | 3 | |
| Heating | Capacity (Btu/H) | (Btu/H) | N/A |
| Standard Current (A) | A | N/A | |
| Standard Input (W) | W | N/A | |
| Rated Current (Max Current) | A | N/A | |
| Rated Input (Max Input) | W | N/A | |
| EER | W/W | N/A | |
| EER | (BTU/Hr)/W | N/A | |
| SEER | W/W | N/A | |
| Star Rating | Star | N/A | |
| Controller type | Remote/wire | Remote | |
| Indoor Net Weight (KG) | Kg | 33.18 | |
| Indoor Gross Weight (KG) | Kg | 37.34 | |
| Indoor Body Size (mm) | mm | 840×840×288 | |
| Indoor Packing Size (mm) | mm | 910×910×350 | |
| Front Panel Body Dimension (WXDXH) | mm | 950x950x55 | |
| Front Panel Packing Dimension(WXDXH) | mm | 1000x1000x100 | |
| Outdoor Net Weight (KG) | Kg | 96.2 | |
| Outdoor Gross Weight (KG) | Kg | 106.8 | |
| Outdoor Body Size (mm) | mm | 980X410X1210 | |
| Outdoor Packing Size (mm) | mm | 1032X470X1280 | |
| Compressor | Type | Rotary | |
| Compressor | Brand | LAMDA | |
| Suction pressure (Mpa) | Mpa | 4.2 | |
| Discharge Pressure (Mpa) | Mpa | 1.5 | |
| Operation temperature | 0C | 16-31 | |
| Pipe Size (Liquie side, Gas side) | Inch | 3/8, 3/4 | |
| Drain Pipe size | Inch (mm) | OD32 | |
| Indoor Air flow | m3/h | 1900/1600/1400 | |
| IDU Noise level ,dB (Hi/Mi/Lo) | dB | 54/50/46 | |
| ODU Noise level ,dB (Hi/Mi/Lo) | dB | 59.5 | |
| Remarks: The above design and specifications are subject to change without prior notice for product improvement. | |||
Warranty for Commercial Usage
Compressor Warranty: 5 Years
Spare Parts Support: 2 Year
Service Warranty: 1 Year
Terms & Conditions
This warranty does not cover the following cases –
- The warranty will be invalid if the product is misused, neglected, or rented commercially. The warranty also will be invalid if repaired, replaced modified by unauthorized service personnel.
- The warranty will be invalid if the product serial number/barcode is removed, altered, or duplicated.
- This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel
Authority reserves the right to change, extend, correct, stop, or cancel the warranty period without any prior notice.
